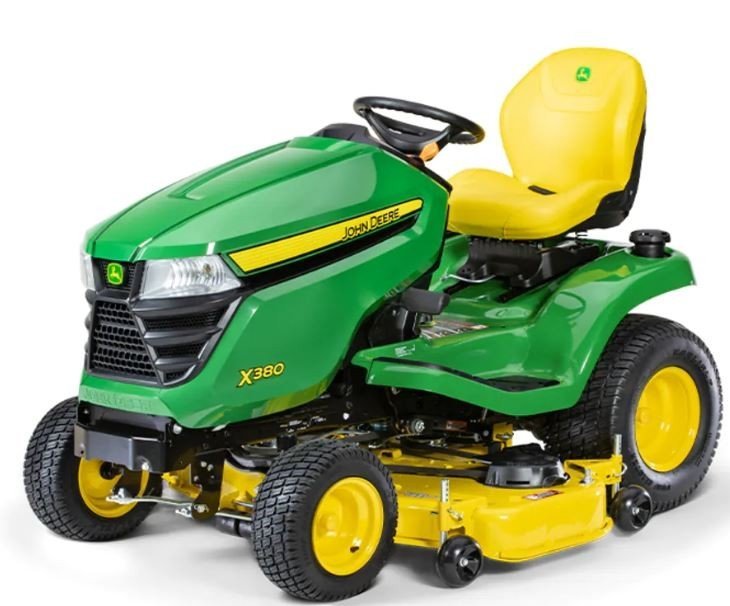

John Deere X380

Description:

Features:

23-hp (17.2-kW)* iTorque™ Power System

54-in. (137 cm) Accel Deep™ mower deck, compatible with optional MulchControl™ kit with one-touch technology

Twin Touch™ forward and reverse foot pedals

4 year/300 hour bumper-to-bumper warranty

Specifications:

Engine

Power: 23 hp / 17.2 kW

Displacement: 44.3 cu in / 726 cc

Manufacturer/Model: FR691V

Type: Overhead valve, full-pressure lube, oil filter

Cylinders: V-twin, cast-iron liners

Governor: Mechanical

Choke/Speed Control: Separate levers, automatic choke return

Cooling Method: Air

Air Cleaner: Dry, replaceable

Oil Change: No-tools oil drain with replaceable filter

Fuel System

Type: Gasoline

Fuel Delivery: Pulse pump, carburetor

Fuel Gauge: Gauge on dash

Fuel Tank Location: Rear

Fuel Fill Opening: On left fender, 3 in / 7.6 cm

Fuel Tank Capacity: 3.3 U.S. gal / 12.5 L

Electrical System

Battery: 12 V, 340 CCA

Charging System: Flywheel alternator, regulated, 12 amp

Engine Starter: Bendix

Hour Meter: Yes

Headlights: Two standard, incandescent, 27 W

Taillights or Reflector: No

Backup Lights: No

Rear Work Lights: No

12-V Outlet: Optional

Transaxle Specifications

Type: K58 hydrostatic integrated with transaxle

Control: Twin Touch™ pedals

Cruise Control: Yes, button on dash

Oil Cooler: Fins and fan on transaxle

Oil Filter: Internal, not replaceable

Differential Lock: No

Forward Speed: 0-6.2 mph / 0-10 km/h

Reverse Speed: 0-3.5 mph / 0-5.6 km/h

Brakes: Internal wet disc

Additional Specifications

Rear Tires: 22×11-10

Lift System Type: Foot pedal with adjustable spring assist

Width

Weight

Height

Length

72.3 Inch

651 Pounds

0 Inch

0 Inch
